Product Description
| Pre-painted Steel Coil / Color Coated Steel Coil (PPGI/PPGL) |
| Width： | 700mm - 1250mm | Zinc Coating： | Z20 - 275g/m2, AZ20 - 180g/m2 |
| Thickness： | 0.11mm - 1.5mm | Painting Coat Style： | 2/1, 2/2 |
| Length： | As require | Paint Coating Thickness： | Top 10 - 35um, Back 4 - 25um |

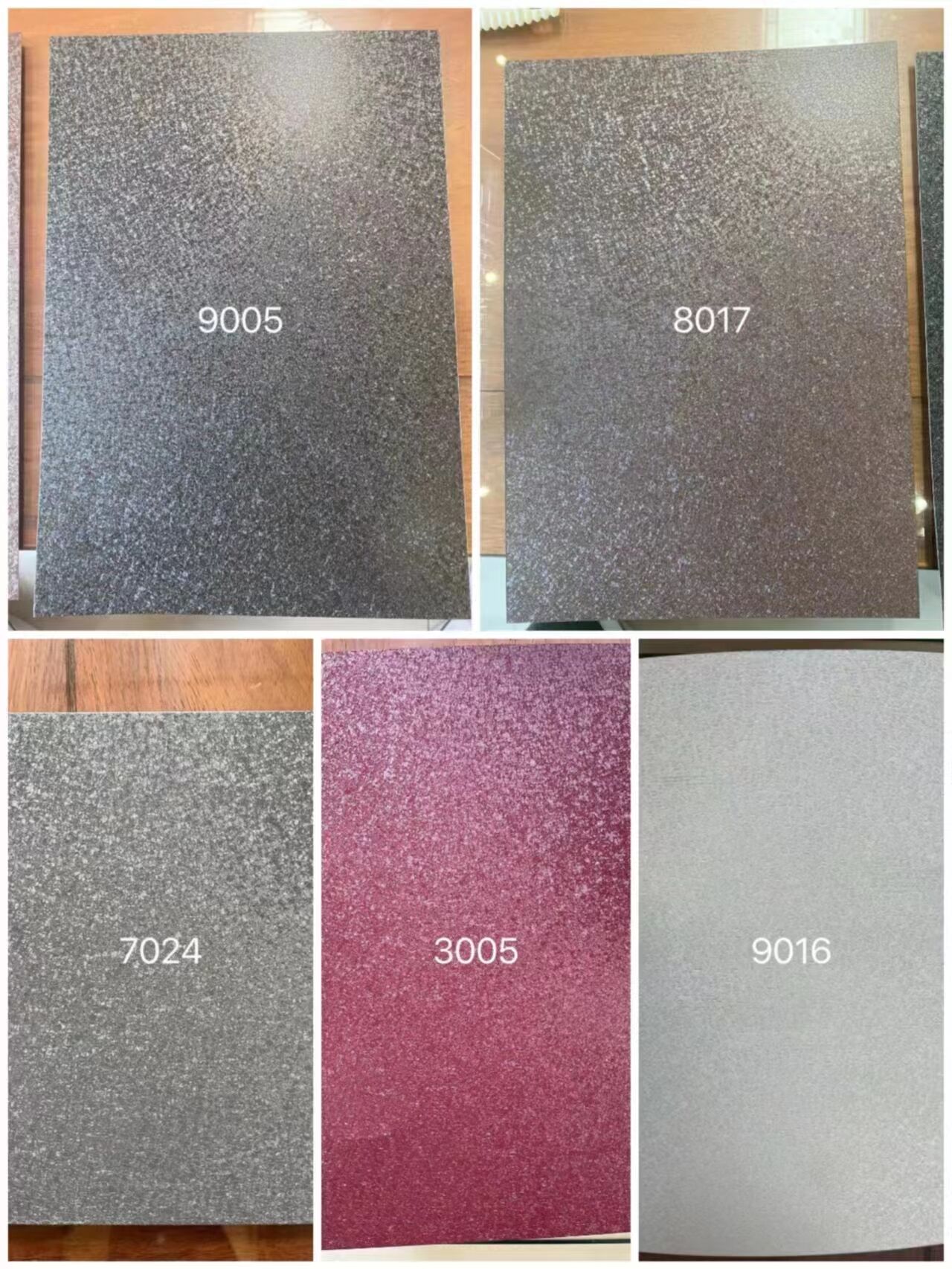

| Type： | Coil/Sheet/Plate/Strip | Color： | RAL Color or As required |
| ID of Coil： | 508/610mm | Surface Treatment: | Flat Surface, Matt, Embossed |
| Commercial Grade： | CGCC, DX51D, CS B |
| Structure Grade: | SGC340/400, G450/G550, SS37/SS40, S320GD/S350GD/S450GD |
| Packing: | Export seaworthy package, suit for all kinds of transport, Bundled with strong steel strips with waterproof packing materials |
Color-coated sheet is based on galvanized sheet, galvalume sheet, zinc-aluminum-magnesium, aluminum-zinc-magnesium, aluminum-magnesium-manganese, stainless steel as the substrate, after surface pretreatment, using a roller coating method, coated with multiple layers of liquid paint, after baking Bake and cool.It uses polyester, silicon-modified polyester, high-weather-resistant polyester, polyvinylidene fluoride, epoxy, and high-sealing corrosion-resistant coatings. It has excellent durability, corrosion resistance, and moldability（formability）. Products are widely used in household appliances, decoration, construction, automotive and other industries.
| Product Name | Film thicknessμm | Core performance | T bend | MEK | Neutral salt spray | QUV-A | Recommended environment |
| Self-cleaning products | ≥25 | Carbon black experiment △E＜2, water contact angle ≥30 degrees | 2T | ≥100 | 1000 h | 3000 h | C3 level environment |
| Heat reflection products | ≥25 | TSR≥0.25，SRI：Light color≥78，other colours≥29 | 2T | ≥100 | 1000 h | 1500 h | C3 level environment |
| Anti-static products | ≥25 | Surface resistance 1066-1099Ω | 2T | ≥100 | 1000 h | 1500 h | C2 level environment |
| Antibacterial products | ≥25 | Activity against Staphylococcus aureus and E. coli＞2 | 2T | ≥100 | 1000 h | 1500 h | C2 level environment |
| Type of coating | Recommended substrate type | Coating thicknessμm | MEK | T bend | Porosity | 5%hydrochloric acid | 5%Sodium hydroxide | Neutral salt spray | Acid salt spray | Alkaline salt spray | QUV-A | Common environment | Dedicated environment | Recommended environment |
| Polyester（PE） | Z/AZ/ZM/AZM | ≥20 | ≥100 | 3T | / | 24 h | 24 h | 1000 h | / | / | 1000 h | 10 year | / | C2 environment |
| High weather resistance（HDP） | Z/AZ/ZM/AZM | ≥23 | ≥100 | 3T | / | 24 h | 24 h | 1500 h | / | / | 1500 h | 15 year | / | C3 environment |
| Silicon Reform（SMP） | Z/AZ/ZM/AZM | ≥23 | ≥100 | 3T | / | 24 h | 24 h | 1500 h | / | / | 1500 h | 15 year | / | C2 environment |
| Fluorocarbon（PVDF） | Z/AZ/ZM/AZM | ≥25 | ≥100 | 2T | / | 24 h | 24 h | 2000 h | / | / | 3000 h | 20~30 year | / | C4 environment |
| Polyurethane（PU） | Z/AZ/ZM/AZM | ≥40 | ≥100 | 2T | / | 24 h | 24 h | 720 h | / | / | 1000 h | 10~20 year | / | C2 environment |
| Hot film（VCM） | Z/AZ/ZM/AZM | ≥100 | / | 0T | / | 360 h | / | / | / | / | / | 10 year | / | C2 environment |
| Color printing | Z/AZ/ZM/AZM | ≥25 | ≥100 | 3T | / | 24 h | 24 h | 600 h | / | / | 1000 h | 10 year | / | C2 environment |
| Reticulated, suede | Z/AZ/ZM/AZM | ≥25 | ≥100 | 2T | / | 24 h | 24 h | 1000 h | / | / | 1000 h | 10 year | / | C2 environment |
High corrosion-resistant polyester
（PE•Pro） | Z/ZM/AZM | ≥25 | ≥1000 | 3T | 90V No breakdown | 120 h | 120 h | 2000 h | 1500 h | 1500 h | 2000 h | 15 year | 10 year | C5 environment |
| High corrosion resistance and weather resistance polyester（HDP•Pro） | Z/ZM/AZM | ≥25 | ≥1000 | 3T | 90V No breakdown | 120 h | 120 h | 2500 h | 2000 h | 2000 h | 3000 h | 20 year | 15 year | C5 environment |
| Super corrosion resistant super weather resistant polyester（HDP•Plus） | Z/ZM/AZM | ≥30 | ≥1000 | 3T | 90V No breakdown | 360 h | 360 h | 4000 h | 3000 h | 3000 h | 4000 h | 25 year | 20 year | C5 environment |
| High corrosion resistance fluorocarbon aluminum magnesium manganese（PVDF•Pro） | Aluminum magnesium manganese | ≥25 | ≥1000 | 2T | 90V No breakdown | 240 h | 240 h | 10000 h | 5000 h | 5000 h | 10000 h | 50 year | / | Key industrial engineering,
National public projects |
| Super corrosion-resistant nano-fluorocarbon aluminum magnesium manganese（PVDF•Plus） | Aluminum magnesium manganese | ≥30 | ≥1000 | 2T | 90V No breakdown | 480 h | 480 h | 20000 h | 10000 h | 10000 h | 15000 h | 70 year | / | Key industrial engineering,
National public projects |
| Centennial stainless steel fluorocarbon（PVDF•Plus） | Stainless steel | ≥30 | ≥1000 | 2T | 90V No breakdown | 480 h | 480 h | 30000 h | 10000 h | 10000 h | 15000 h | 100 year | / | Key industrial engineering,
National public projects |
| High corrosion-resistant epoxy back paint | / | ≥12 | ≥100 | 4T | 67.5V No breakdown | 120 h | 120 h | 2000 h | 1500 h | 1500 h | / | / | / | Supporting the use of |
| Super corrosion-resistant epoxy back paint | / | ≥20 | ≥100 | 3T | 90V No breakdown | 240 h | 240 h | 3000 h | 2500 h | 2500 h | 2000 h | / | / | Supporting the use of |

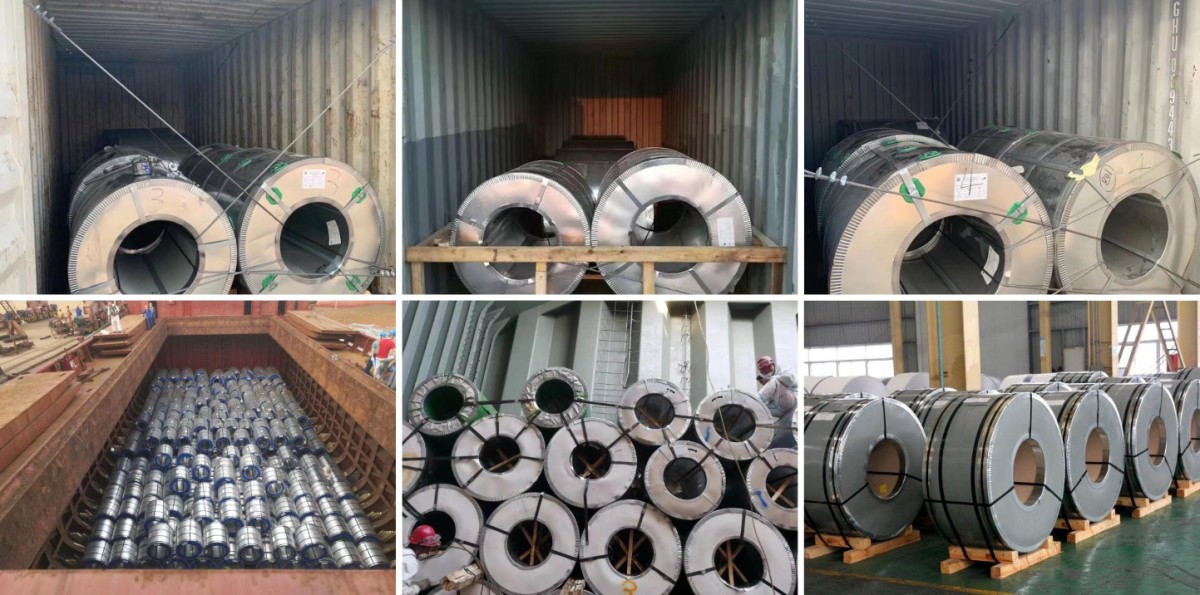

Product Shipment
FAQ
1、Are you a factory or a trading company?
We are a factory that produces Galvanized Steel Coil, Galvalume Steel Coil,
Prepainted Steel Coil, and Corrugated Roofing Sheet.
You are welcome to visit our factory.
2、Do you provide samples?
Yes, we provide samples and we have stock available.
3、What are your payment methods?
We accept T/T and L/C payments.
4、Will you provide Mill Test Certificate?
Yes, we conduct quality inspections for every batch of goods and provide Mill Test Certificate.
5、Do you support third-party testing companies?
Yes, we support third-party testing companies such as SGS and BV.
6、What is your minimum order quantity?
Our minimum order quantity depends on the product type and specifications.
Please consult our sales team for more information.
7、What is your delivery time?
Our delivery time depends on the quantity and requirements of the order.
Specific delivery times can be negotiated with our sales team.
